Product Description

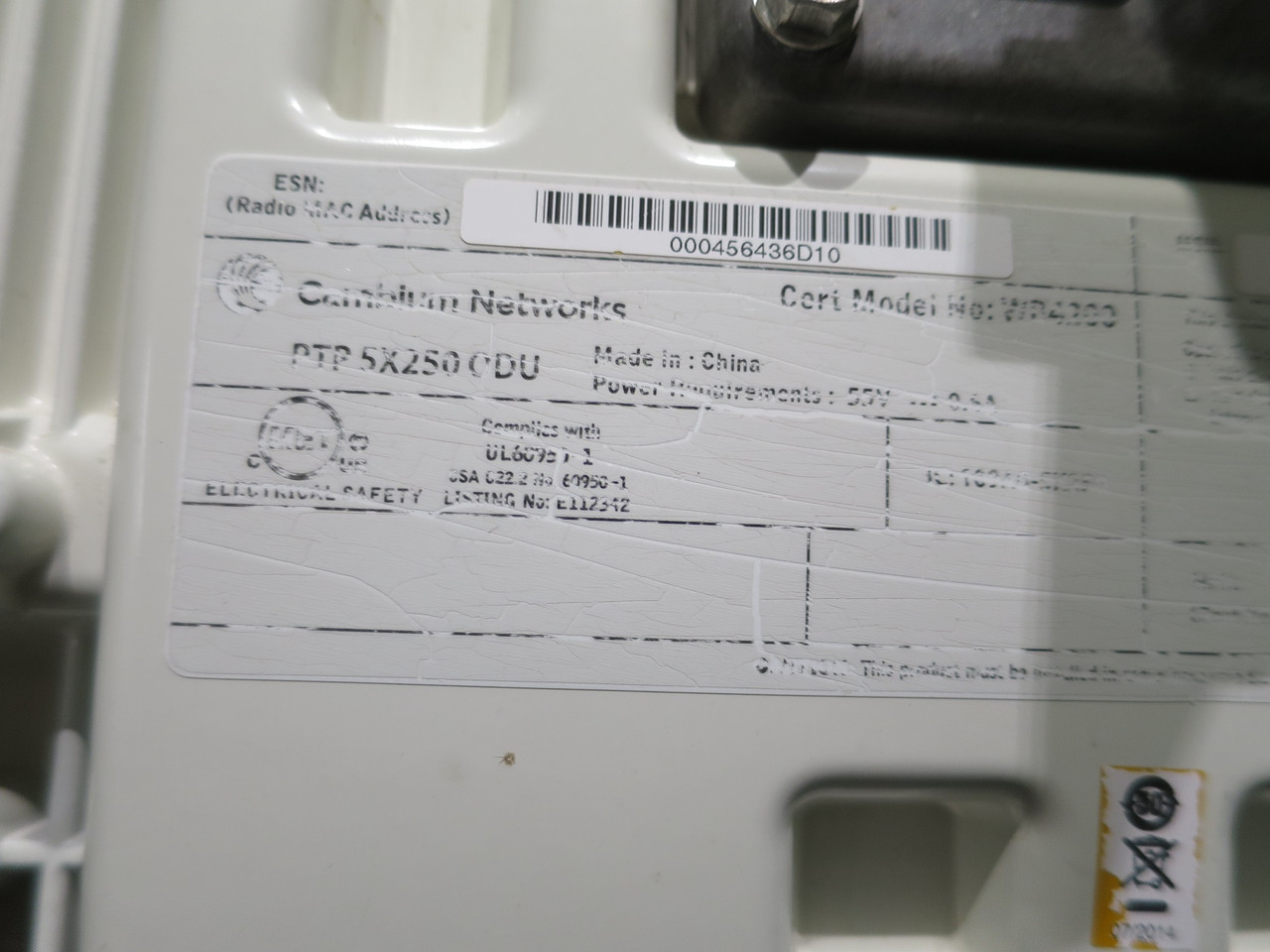

The Integrated ODU is a self-contained unit that houses both radio and networking electronics, and is attached to it's own flat plate antenna.
Cambium PTP 250 products are designed for Ethernet bridging over point-to-point microwave links in the 5.4 GHz and 5.8 GHz unlicensed bands. Users must ensure that the links comply with local operating regulations. The PTP 250 is used to create a transparent bridge between two segments of the operator's network. This bridge can be treated as a virtual wired connection between two points.
The key features of the PTP 250 include:
•Orthogonal Frequency Division Multiplexing (OFDM) modulation and Multiple-Input Multiple-Output (MIMO) techniques.
•Wireless connections of up to 54 km (34 miles) in near line-of-sight conditions.
•High link availability, through the use of adaptive modulation techniques that dynamically reduce the data rate in severe or adverse conditions.
•High-sensitivity antennas for improved signal recovery.
•A built-in web server for advanced management capabilities including detailed radio signal diagnosis.
•Password control and encryption.
•Avoidance of interference from other devices: at initialization, the PTP 250 monitors the available frequency channels to find a channel that is clear of interference
Radio bands:
The PTP 250 operates in bands that offer the dual benefits of high data throughput and good radio propagation characteristics. All PTP 250 product variants may operate in both of the following bands:
•ETSI/RoW: 5.4 GHz (ETSI Band B) or 5.8 GHz (ETSI Band C).
•FCC/IC: 5.4 GHz or 5.8 GHz (FCC ISM band).Some earlier product variants only operated in the 5.8 GHz band. The wide band of spectrum available is subdivided into several channels such that multiple systems can operate in the vicinity without causing interference to one another.
