Product Description
New open box. Box shows signs of shelf wear and some tearing.
Manufacturer Information and Specs

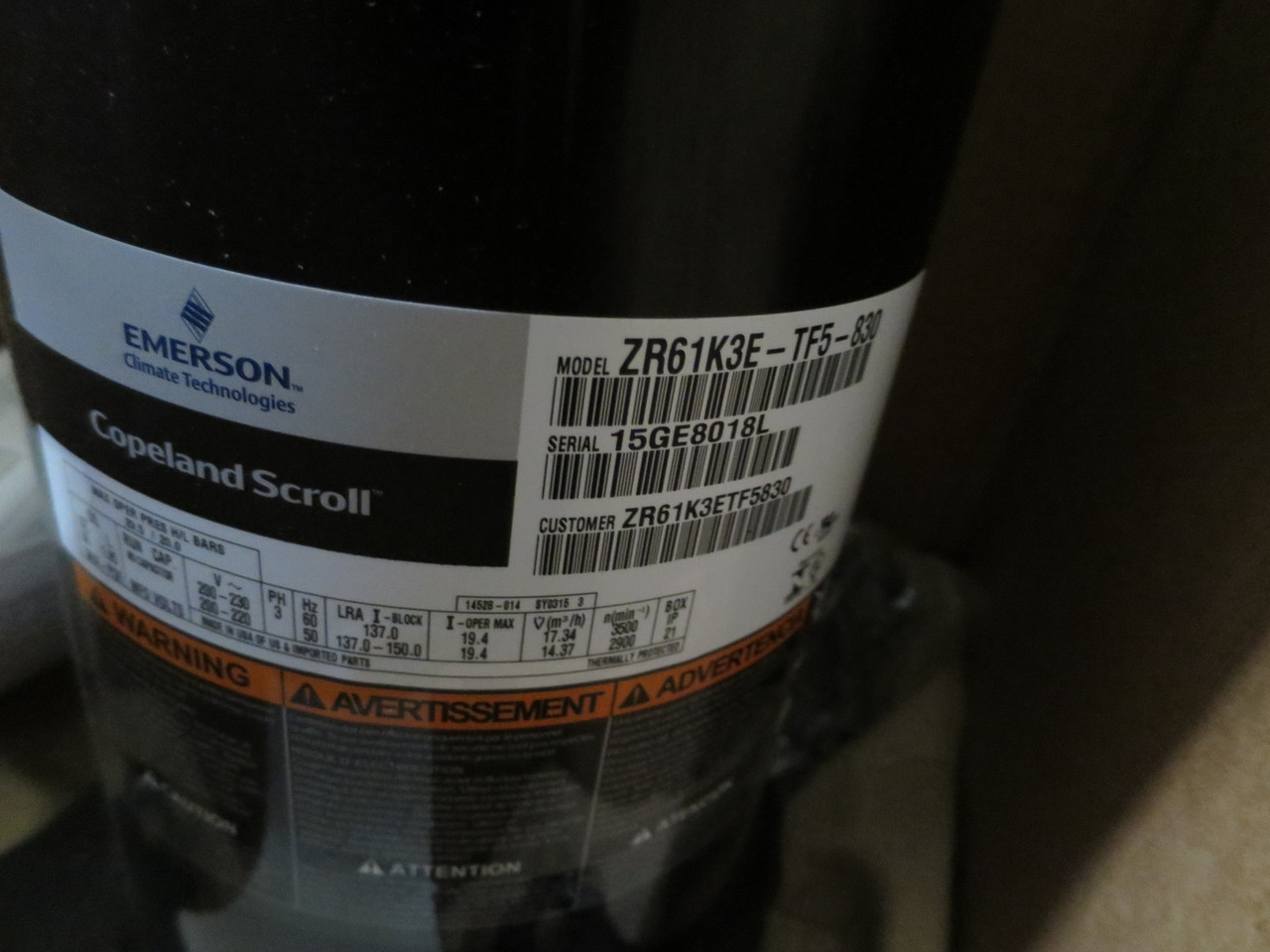

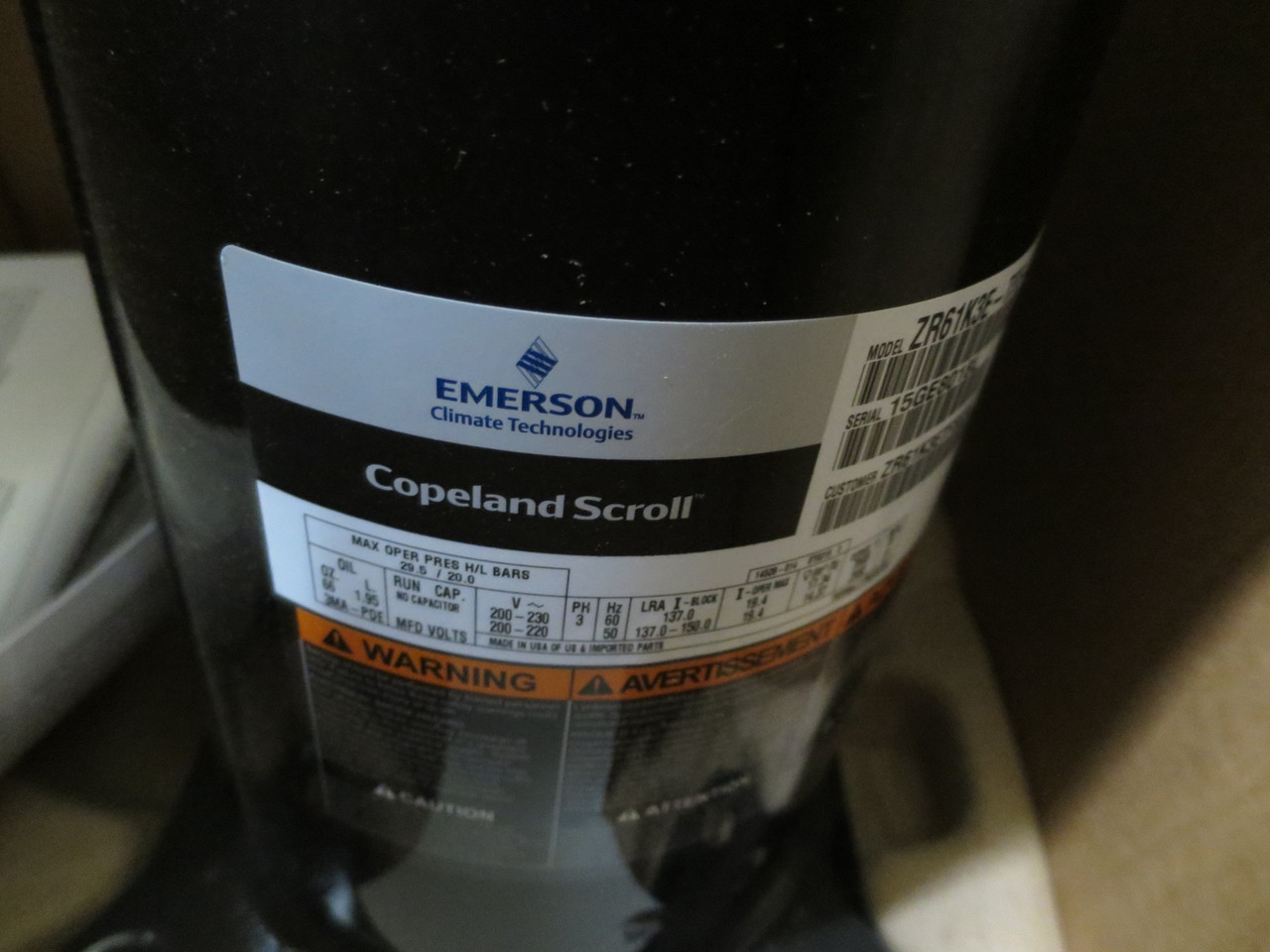

Factory Authorized Part - ZR61K3E-TF5-830 62,000 BTUH Copeland Scroll Compressor for R-22 Refrigerant
Dimensions
Length 9.69 Inches (in)
Width 9.69 Inches (in)
Height 17.24 Inches (in)
Weight 84 Pounds (lbs)
Attributes
Amps 12.4-16.5
BTU Output 62000
Brand RCD Parts
Compressor Housing Hermetic
Compressor Type Scroll
Country Of Origin USA
Cubic Measurement 2.2358
Cycle/Hertz 50/60 Hz
Dimensional Weight 29
Discharge Connection Size (OD) 1/2"
Discharge Connection Type Stub
Evaporating Temperature 45°F (7.22°C)
Locked Rotor Amps (LRA) 137
Mass Flow (lbs/hr) 940 lbs./hr.; 910 lbs./hr.
Mounting Dimensions 7.5" x 7.5" x 17.99"
OPT Code ZR61K3ETF5830
Package Height 20.2
Package Length 14.6
Package Weight 85
Package Width 13.1
Phase Three
Product Family ZR
Prop 65 NO
Protection Internal Inherent Protection
Rated Load Amps (RLA) 17.3,19.3
Ratings ASRAE ARI
Refrigerant R-134a; R-22; R-407C
Return Gas Temperature 65°F (18.33°C)
Suction Line Fitting Type Stub
Suction Line Size (OD) 7/8"
UL Listed YES
UOM EA
Voltage 200-220/200-230 VAC
