Product Description
Sharp XG-C435X Specs
POWER DEVICE
Type: power supply
Nominal Voltage: AC 120/230 V
Frequency Required: 50/60 Hz
Power Consumption Operational: 360 Watt
CHASSIS
Built-in Devices: speaker
INTERFACE PROVIDED
Qty: 1, 2

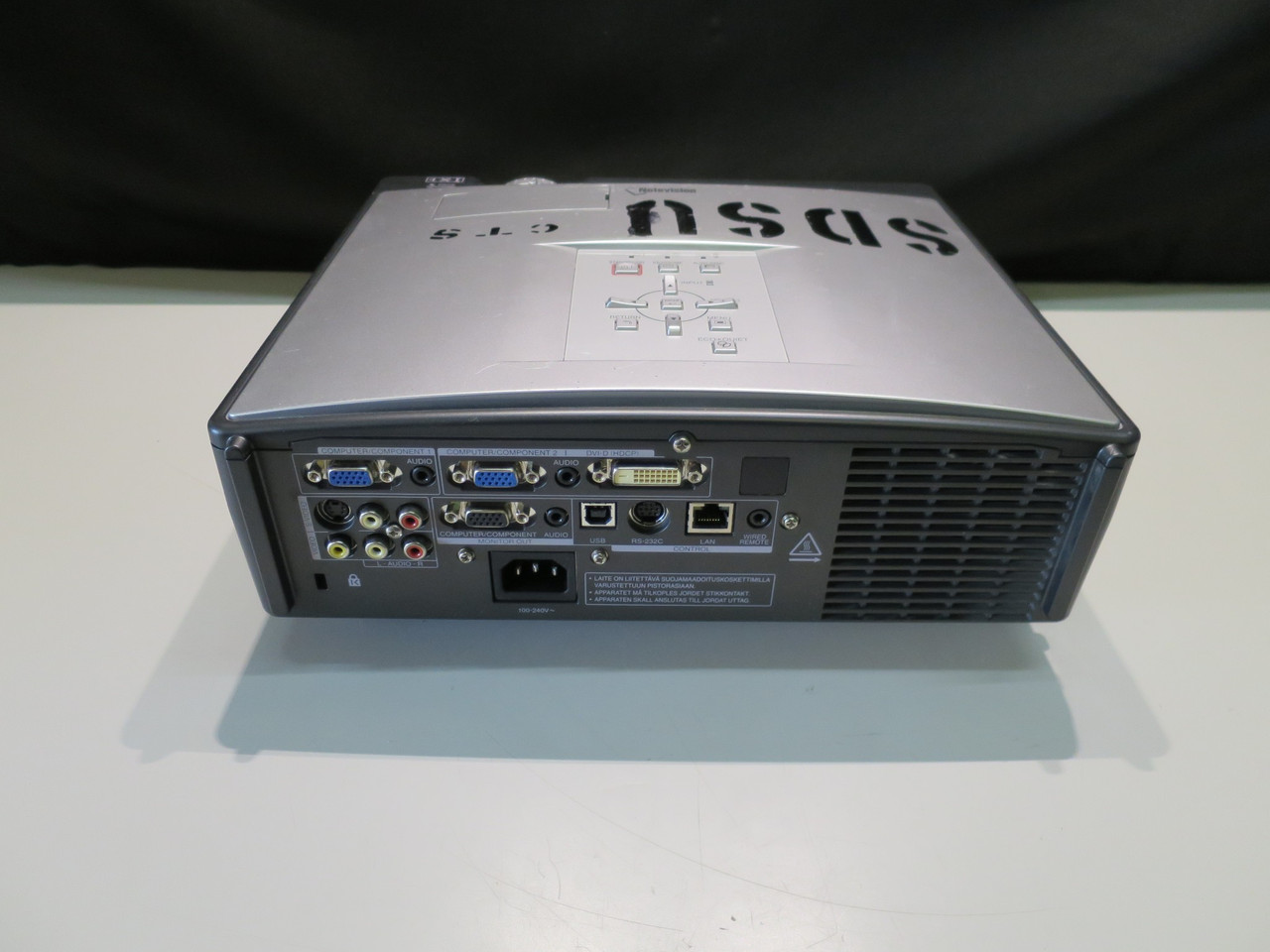

Connector Type: 15 pin HD D-Sub (HD-15)   24+1 pin digital DVI   4 pin USB Type B    4 pin mini-DIN   9 pin mini-DIN   RCA, RJ-45   mini-phone 3.5 mm   mini-phone stereo 3.5 mm
DISPLAY
Image Brightness: 4000 ANSI lumens
Image Contrast Ratio: 550:1
Image Size: 39.8 in - 500 in
Projection Distance: 4.7 ft - 70 ft
Max Sync Rate (V x H): 85 Hz x 70 kHz
POWER
Power Consumption Stand by / Sleep: 6 Watt
VIDEO OUTPUT
Analog Video Signal: RGB, component video
VIDEO INPUT
Digital Video Standard; Digital Visual Interface (DVI)
Video Modes: 1035i, 1080i, 480i, 480p, 540p, 576i, 576p, 720p
Analog Video Format: NTSC, PAL, SECAM
Analog Video Signal: RGB, S-Video, component video, composite video
Video Interfaces: DVI, S-Video   VGA, composite video
TV System: NTSCÂ Â Â SECAMÂ Â Â PAL
ENVIRONMENTAL PARAMETERS
Sound Emission (Economic Mode): 31 dB
HEADER
Brand: Sharp
Product Line: Sharp
Model: XG-C435X
Compatibility; Mac   PC
OPERATION
Lamp Type: NSH 275 Watt
Lamp Life Cycle: Up to 2000 hour(s) - normal mode
Up to 3000 hour(s) - economic mode
Nominal Voltage: AC 120/230 V (50/60 Hz)
PROJECTOR
Class; digital projector
Recommended Use; presentation and multimedia
Type: LCD projector
Portability; non-portable
Min Image Size: 39.8 in
Max Image Size; 500 in
Native Resolution; 1024 x 768
Max Resolution (Resized):Â 1400 x 1050
Display Resolution Abbreviation: XGA
Max V-Sync Rate: 85 Hz
Max H-Sync Rate: 70 KHz
Video Bandwidth: 108 MHz
Native Aspect Ratio: 4:3
Brightness:Â 4000 ANSI lumens
Brightness (Reduced): 3200 ANSI lumens
Contrast Ratio: 550:1
Min Screen Distance: 4.7 ft
Max Screen Distance: 70 ft
Throw Ratio: 1.8 - 2.1:1
Uniformity: 90 %
Projector Features: Eco-Mode technology, integrated de-interlacer (progressive scan)
AUDIO OUTPUT
Type: speaker(s)
Sound Output Mode: mono
Form Factor: integrated
Output Power / Channel: 2 Watt
PROJECTOR LENS SYSTEM
Lens: standard lens
Focus Type: manual
Lens Aperture: f/1.7-1.9
Zoom Type: manual
Zoom Factor: 1.2x
DIMENSIONS & WEIGHT
Width: 12.8 in
Depth: 11 in
Height: 4 in
Weight: 10.8 lbs
AUDIO OUTPUT DETAILS
Speaker Type: mixed channel
Speakers Qty: 1
CABLE DETAILS
Type; VGA cable, serial adapter
