Product Description

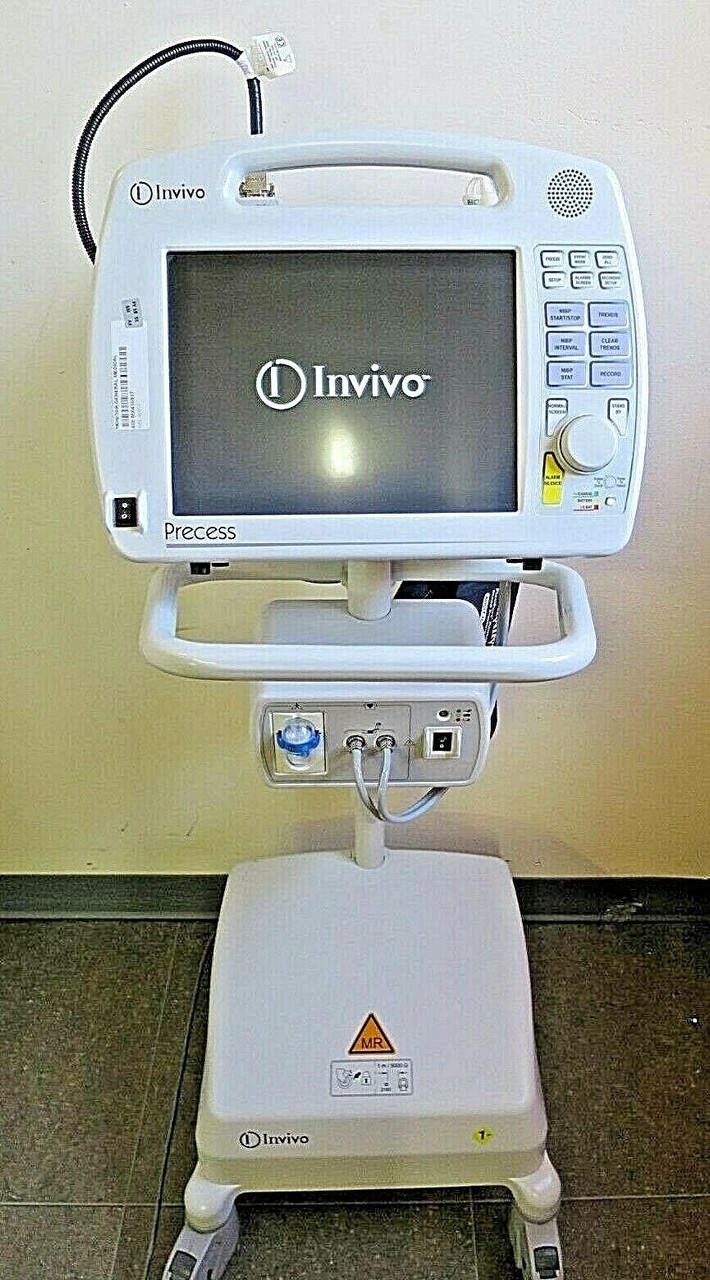

Invivo Precess 3160 MRI Patient Monitoring System
Sale includes:
- Owner's Manual

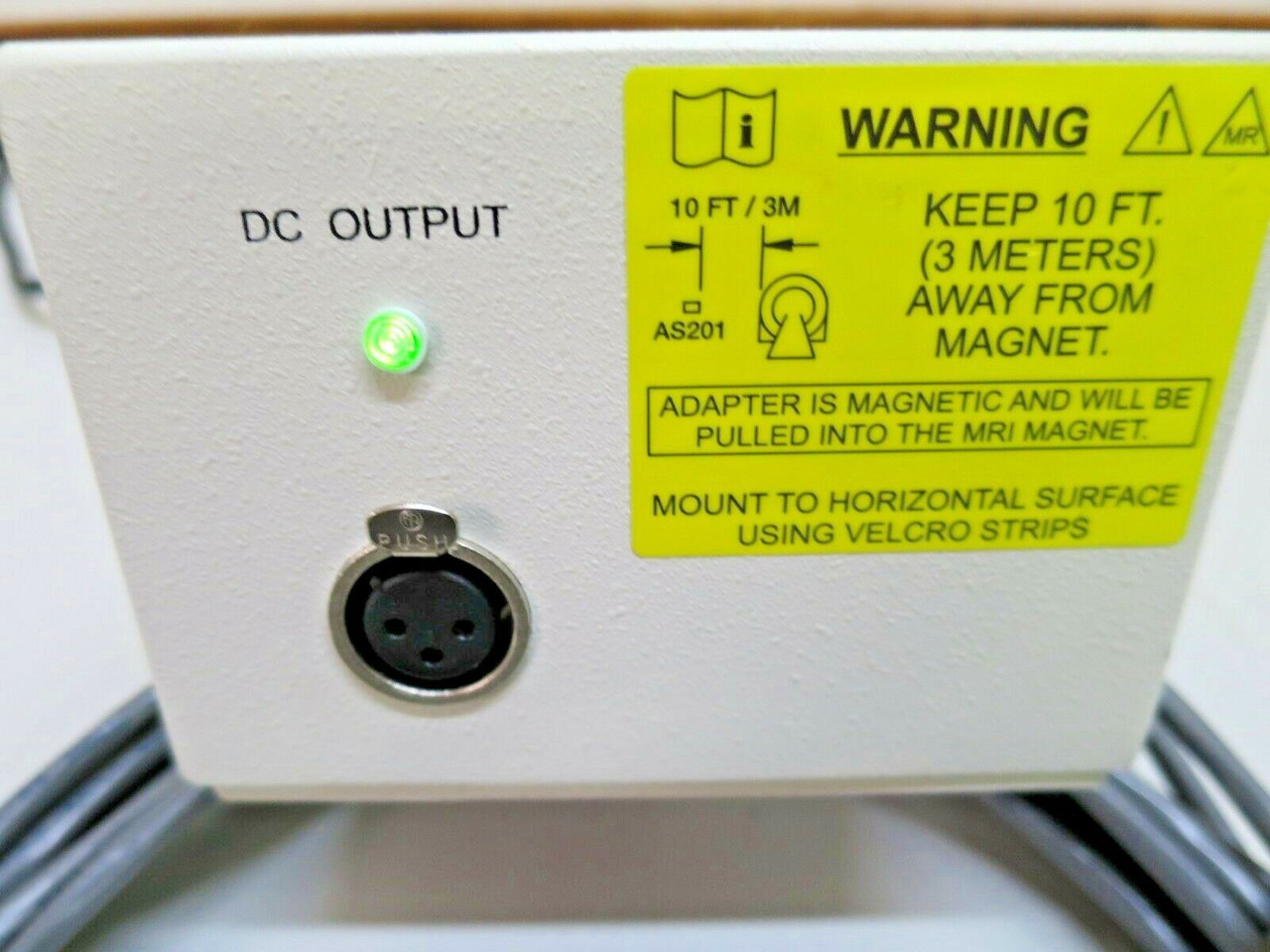

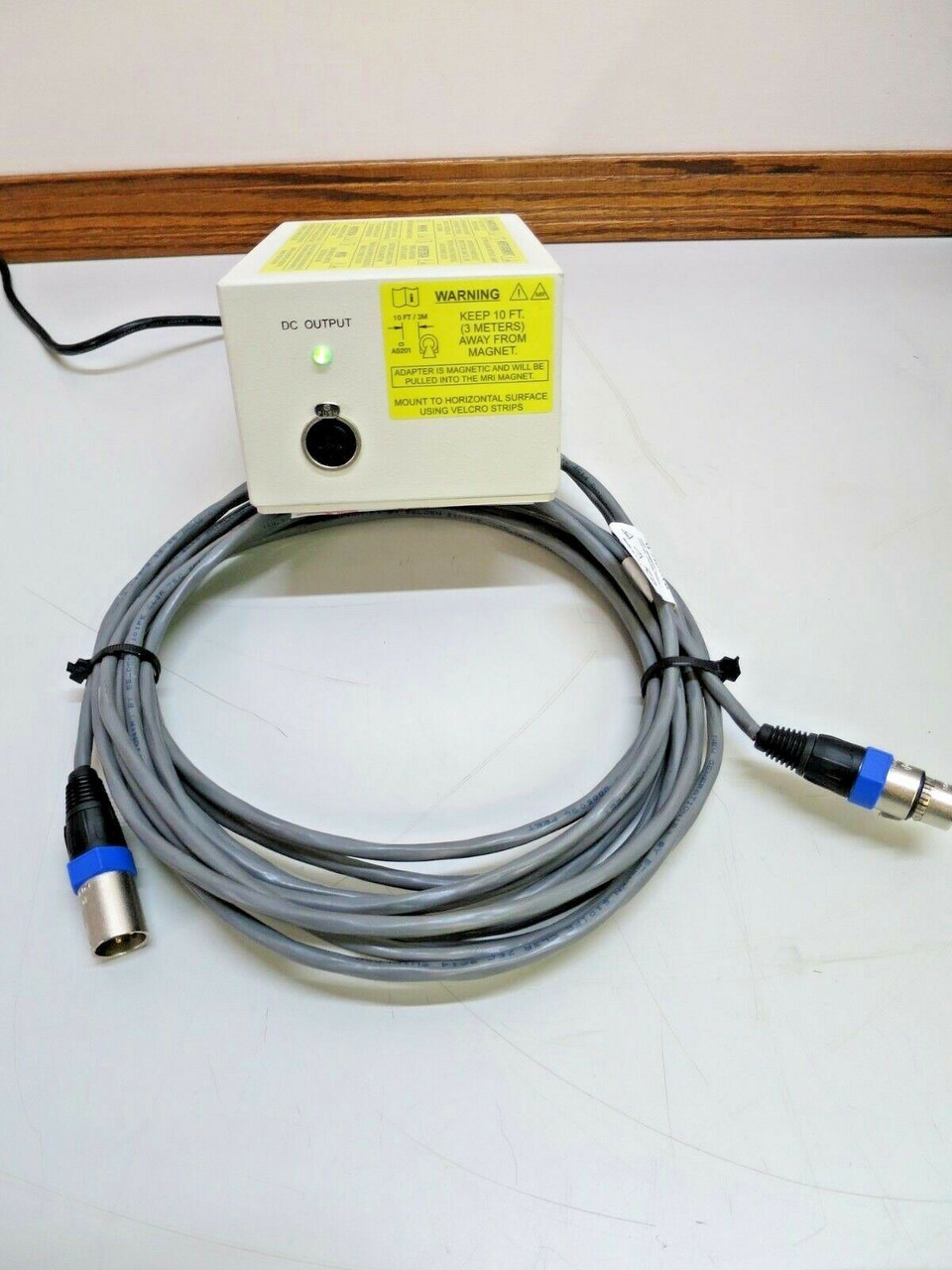

- Wireless Processing Unit with AS201 Power Adapter & Cord

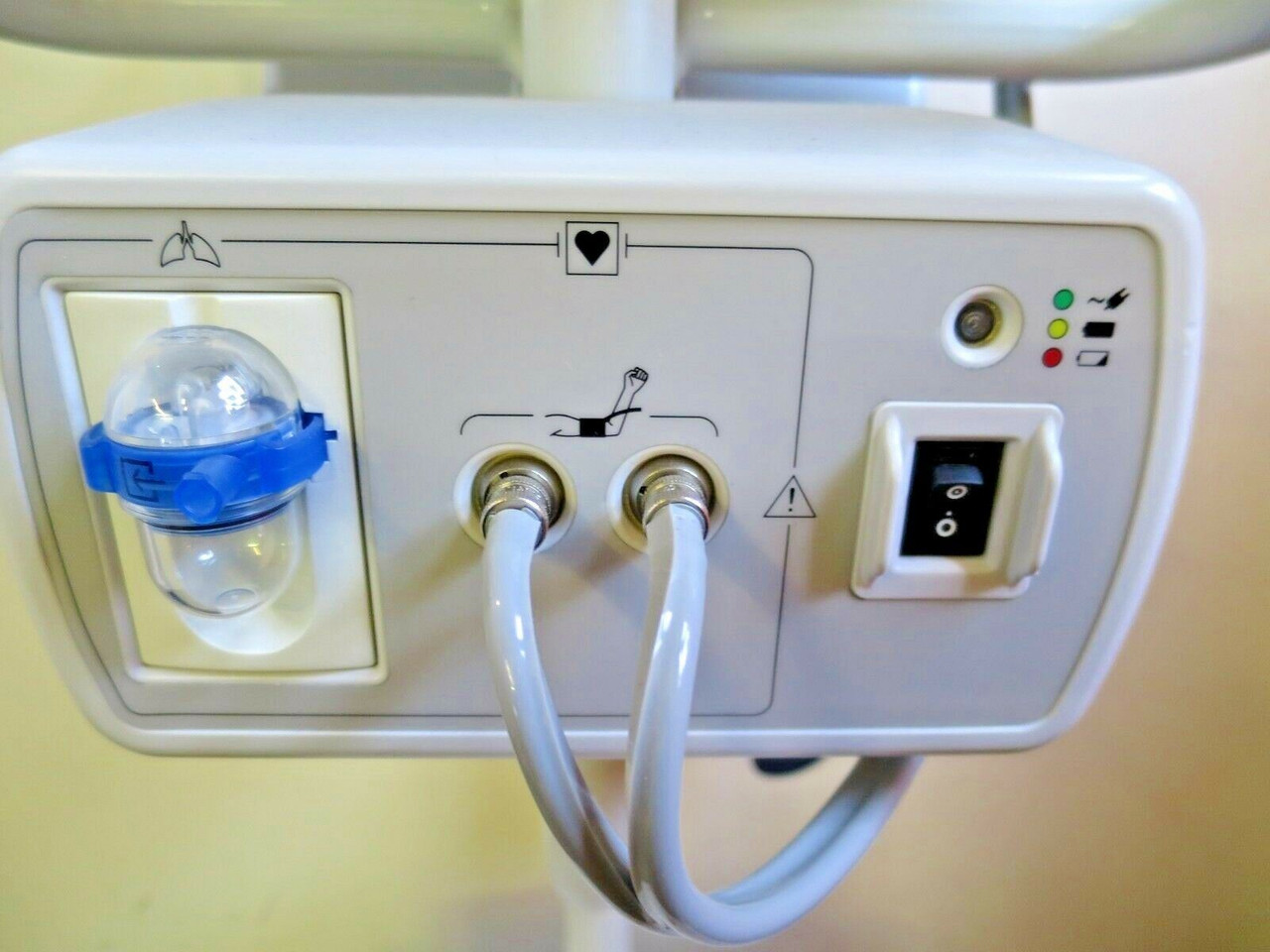

- Patient Connection Unit
- Display Controller Unit

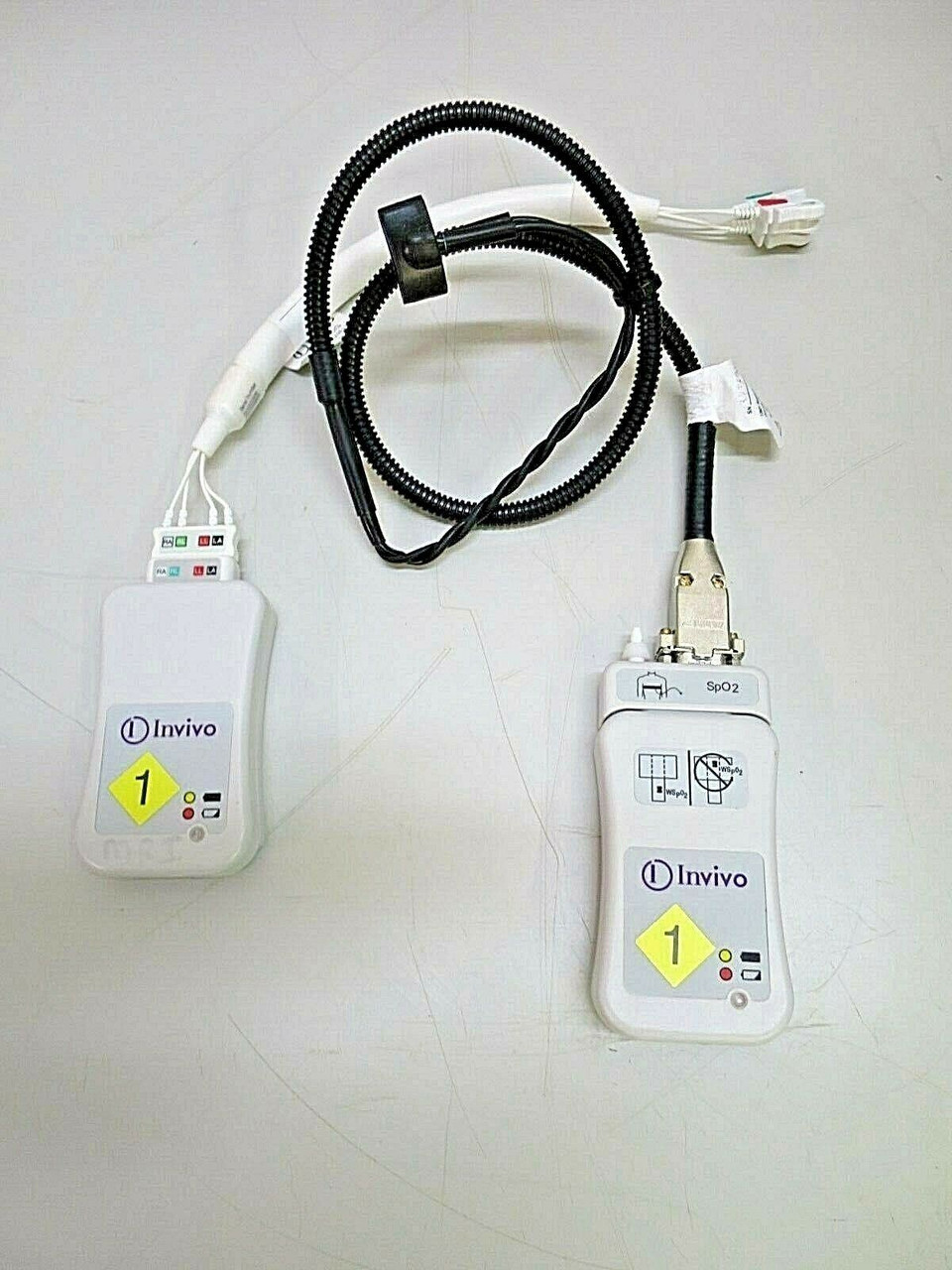

- Wireless ECG Module with Cable
- Wireless SpO2 Module with Cable
- Blood Pressure Cuff with Tubing
Sale Does Not Include: Module Battery Chargers
The Precess MRI Patient Monitoring System is designed to assist clinicians in monitoring patient vital signs in the dynamic magnetic resonance environment. The Precess combines wireless communication, radio frequency (RF) shielding, and digital signal processing (DSP) to address the challenges associated with patient monitoring in the MR environment. The Precess provides accurate, continuous, and reliable performance during MRI applications in a cost‐efficient package.

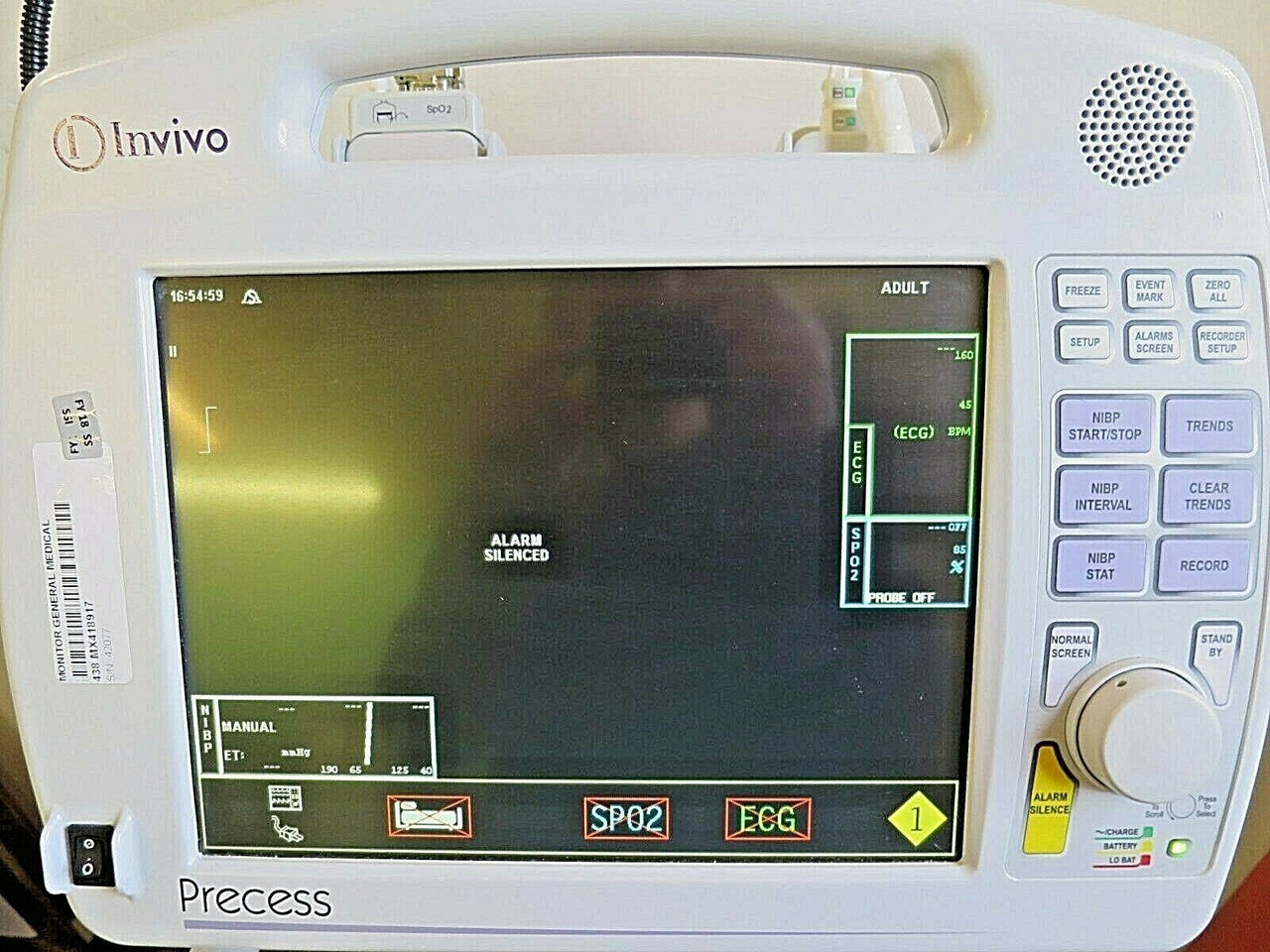

- Integral color LCD display for patient information
- Intuitive graphical user interface
- Colored waves and large numerics
- CRD printer
- Simultaneous display of up to 8 parameters, and 6 waveforms and associated values
- Visual and audible alarm signals, pulse tones, and system status messages
Height

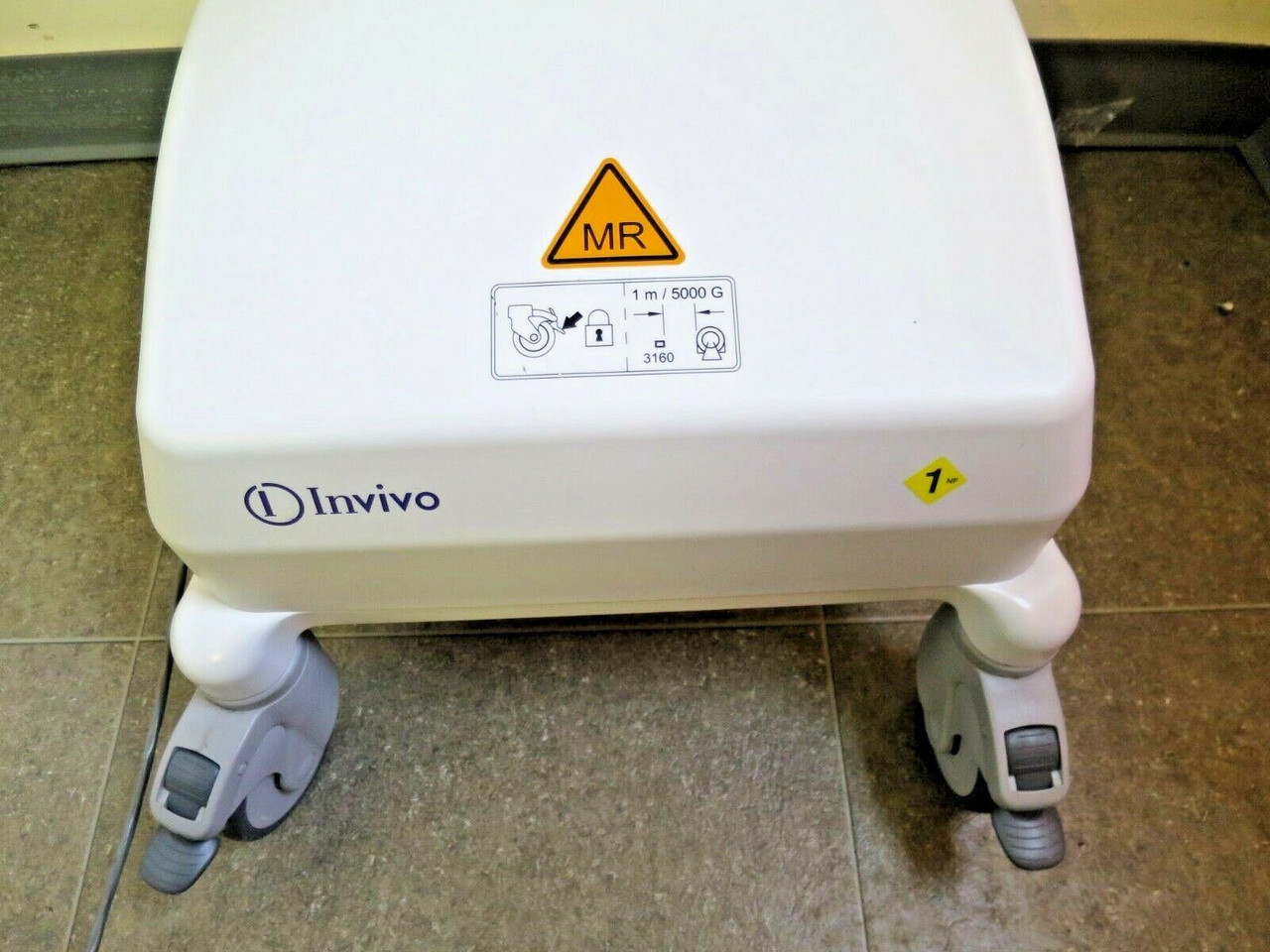

- Cart: 48.5 ± 0.5 inches (123.2 ± 1.3 cm)
- CRD: 10.4 inches (26.4 cm)
- Wireless ECG module: 4.7 inches (11.9 cm)
- Wireless SpO2 module: 5.5 inches (13.9 cm)
Width
- Cart: 17.5 ± 0.5 inches (44.5 ± 1.3 cm)/li>
- CRD: 15.3 inches (38.9 cm)
- Wireless ECG module: 2.5 inches (6.4 cm)/li>
- Wireless SpO2 module: 2.5 inches (6.4 cm)
Inspiration time (Ti)
- 0.11 to 10 s (adults)
- 0.1 to 10 s (pediatric patients, neonates)
Depth)
- Cart: 17.5 ± 0.5 inches (44.5 ± 1.3 cm)
- CRD: 4.6 inches (11.7 cm)
- Wireless ECG module: 0.91 inches (2.3 cm)
- Wireless SpO2 module: 0.91 inches (2.3 cm)
Weight
- Cart: 75 ± 0.5 lbs (34 ± 0.2 Kg)
- CRD: 20 lbs (9.1 Kg)
- Wireless ECG module: 5.4 oz (158.8 g)
- Wireless SpO2 module: 5.4 oz (158.8 g)

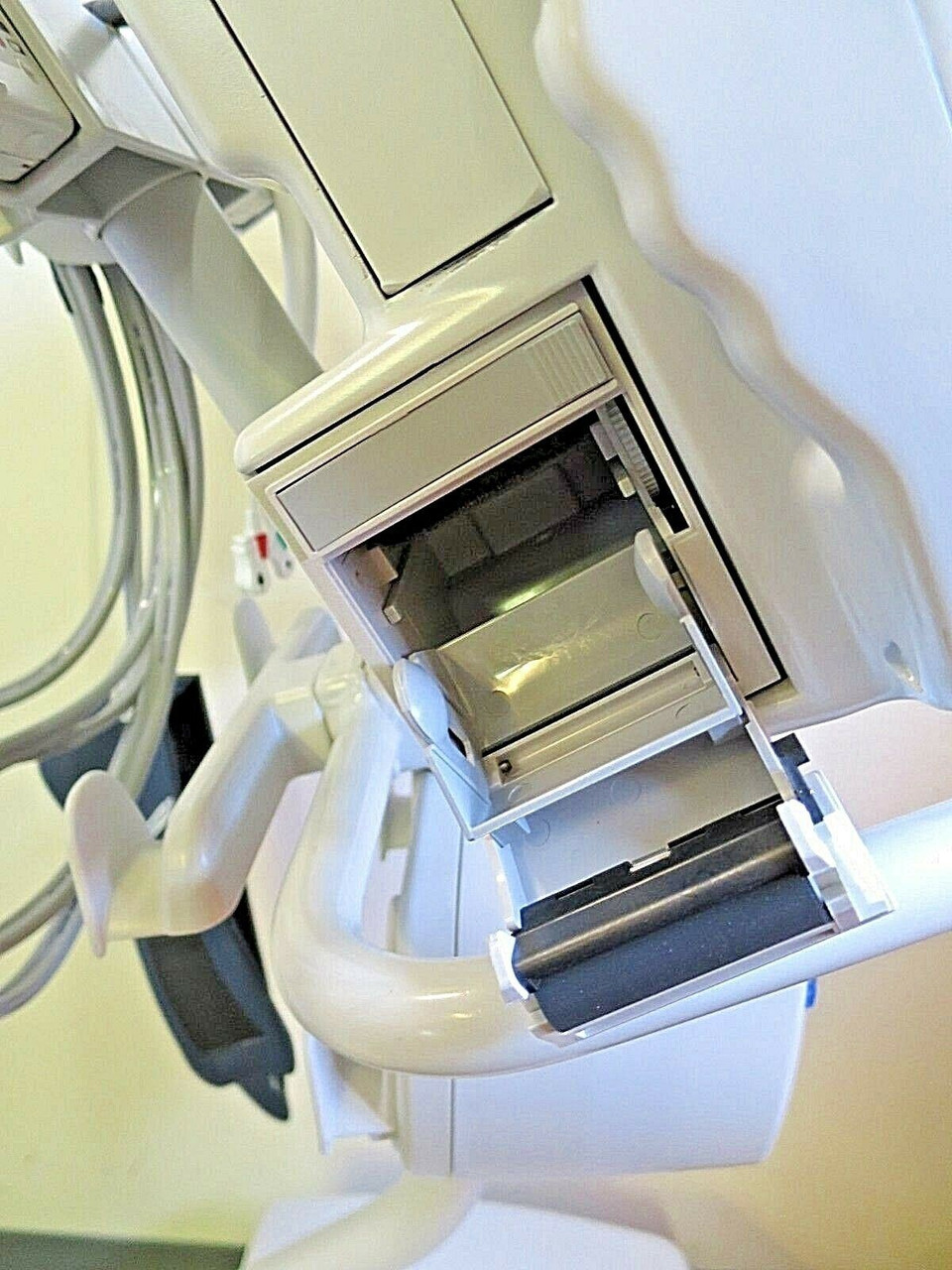

Printer
- Chart speed: 25 or 50 mm/second
- Number of channels: 2
- Paper type and size: Non‐grid thermal, 50 mm wide
